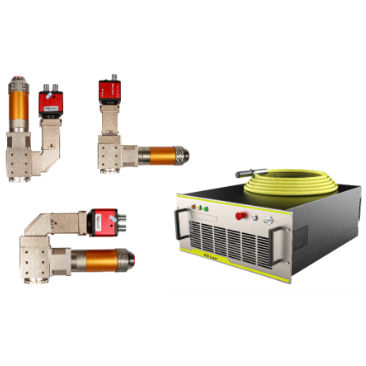

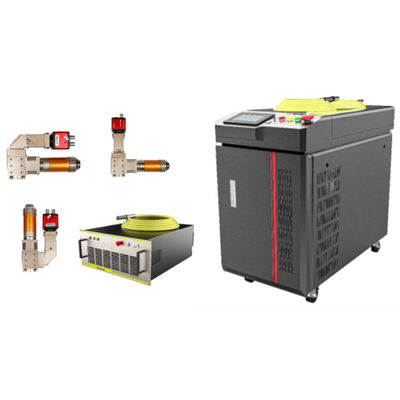

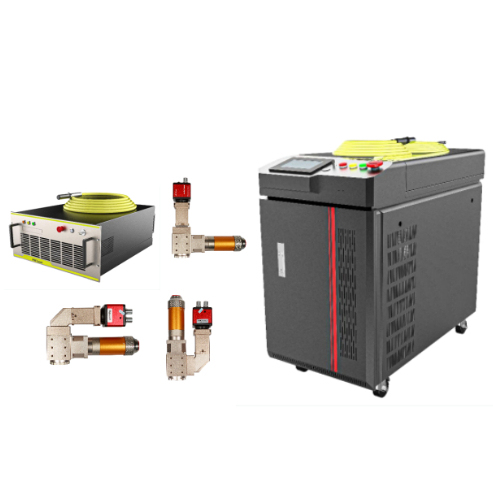

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper

Marchio:	HanWei
Numero di modello:	HW-QCW
Moq:	1 insieme
prezzo:	USD / Set
Condizioni di pagamento:	T/T
Capacità di approvvigionamento:	2000 set / anno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

Potere laser:

150W/300W

Dimensioni della macchina:

665*450*300 mm

Potenza di punta:

1500W/3000W

Larghezza dell'impulso:

0.5-50

Energia impulsiva:

15J/30J

Lunghezza d'onda:

1070 nm ± 10%

Consumo energetico:

2 kW/2,5 kW

Stabilità del potere:

≤ ± 1%

Tensione in ingresso:

AC220V 50/60Hz

Metodo di raffreddamento:

Raffreddamento d'aria

Peso della macchina:

22 kg/28 kg

Frequenza:

100 Hz/2 kHz

Imballaggi particolari:

Imballaggio in compensato di esportazione

Capacità di alimentazione:

2000 set / anno

Evidenziare:

QCW laser welder for copper

industrial laser welding machine with warranty

laser welder with independent hardware software

Descrizione del prodotto

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper Description:

Quasi-continuous wave (QCW) fiber lasers are a type of laser source that combines long pulse widths with high peak power output, making them highly suitable for industrial welding scenarios that require high energy density and stable thermal input. For example, in precision processes such as metal spot welding, seam welding, and seal welding, QCW lasers can achieve deeper and more robust weld structures while maintaining good weld consistency. Their pulse width can be flexibly adjusted, allowing for strict control of the heat-affected zone in fine welding, while also providing sufficient energy for processing thicker metals, demonstrating strong adaptability.

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper Features:

1. Replace some YAG laser welding applications.

2. Reduce maintenance costs and improve equipment availability.

3. Independently developed hardware and software systems ensure stable output.

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper Technical Parameters:

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Wavelength	1070nm ± 10%	1070nm ± 10%
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Pulse Width	0.5-50	0.5-50
Pulse Energy	15 J	30 J
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Cooling Method	Air Cooling	Air Cooling

QCW Laser Welder with Independently Developed Hardware & Software Systems for Copper Application:

This product is driven entirely by a self-developed software and hardware platform, from the laser core light source and energy-splitting control system to the time-division waveform output system. High-speed responsive control algorithms work in synergy with a highly reliable optical structure to ensure stable welding energy and consistent repeatability, achieving precise matching with different welding stations and production rhythms. This fully independently controllable system architecture not only enhances equipment compatibility but also facilitates future scalable upgrades, meeting the needs of multiple industries and processes.

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser is one of the few in the world that independently develops the complete set of hardware and software for high-speed laser spectroscopic systems, energy spectroscopic systems, and time spectroscopic systems.

Its product lineup primarily covers:

Ring-Spot laser welders
Blue laser welders
Blue laser + fiber hybrid welders
Diode + fiber hybrid welders
YAG + Diode hybrid welders
YAG laser welders
Diode laser welders
Mold repair laser welders
QCW laser welders

In addition, it supplies supporting laser welding control systems, laser welding optical systems, and relevant auxiliary products for laser welding peripherals.
