HanWei Diode Laser Welding Machine with Uniform Spot Energy for Plastic Industry

HanWei Diode Laser Welding Machine with Uniform Spot Energy for Plastic Industry

Marchio:	HanWei
Numero di modello:	HW-D
Moq:	1 insieme
prezzo:	USD / Set
Condizioni di pagamento:	T/T
Capacità di approvvigionamento:	2000 set / anno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

Struttura della testa laser:

Serie T / F / Y 36

Modello:

Potere laser:

200W - 1000W

Lunghezza d'onda:

915nm ± 5

Connessione:

SMA905 / QBH

Metodo di raffreddamento:

raffreddamento ad acqua/aria

Modalità di raffreddamento:

CW / QCW / PWM con controllo temporale

Fibra core (um):

100/200 um

Dimensione della fonte laser:

525*430*225 mm

Imballaggi particolari:

Imballaggio in compensato di esportazione

Capacità di alimentazione:

2000 set / anno

Descrizione del prodotto

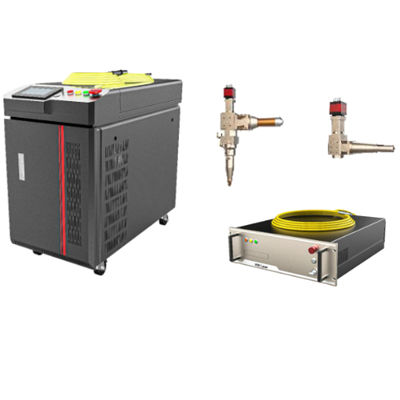

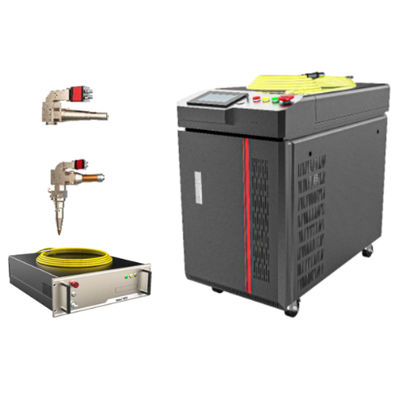

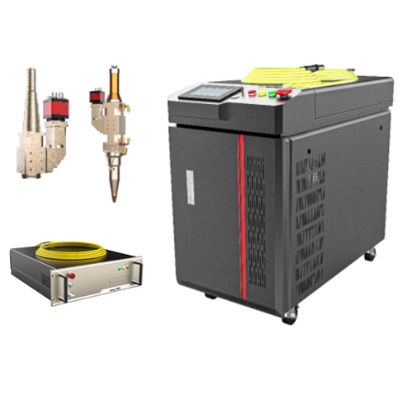

HanWei Diode Laser Welding Machine with Uniform Spot Energy for Plastic Industry

Hanwei Fiber Diode laser welding machine uses a fiber-coupled semiconductor laser as its core light source. Compared with traditional YAG solid-state lasers, its electro-optical conversion efficiency is significantly improved, reaching a high-efficiency level. This means that under the same welding power, the equipment can output more stable laser energy with lower energy consumption, effectively reducing production costs. In addition, the fiber structure provides better heat dissipation and high stability, allowing the machine to maintain stable output power even during long periods of continuous operation, which helps improve the reliability and consistency of factory production lines.

Key Features

Fiber semiconductor laser with higher electro-optical conversion efficiency.
Compact size and the cost advantage of a self-developed light source control system.
Beam characteristics with a relatively large spot size and uniform energy distribution.
Suitable for plastic welding, soldering, thin metal sheet welding, etc.

Technical Specifications

Model	HW-D
Laser Power	200W - 1000W
Wavelength	915nm ±5
Fiber core(um)	100/200 um
Connection	SMA905 / QBH
Laser Head Structure	T / F/ Y 36 Series
Cooling Mode	Air/Water Cooling
Working Mode	CW / QCW / PWM with timing control
Laser source size	525430225 mm

Primary Applications

Due to its gentle and stable heat input characteristics, the semiconductor laser welding machine is particularly suitable for plastic welding, soldering electronic components, and welding thin metal sheets such as stainless steel and galvanized steel. It has been widely used in industries such as consumer electronics, home appliance manufacturing, automotive electronics, and medical devices. With strong process adaptability, a small welding heat-affected zone, and aesthetically pleasing weld seams, it can effectively improve product consistency and production efficiency, helping enterprises achieve higher quality manufacturing.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a certified national high-tech and "specialized, sophisticated, distinctive, and novel" enterprise, we focus on full-industry-chain R&D, production, and sales of welding-dedicated lasers and related technologies.

Our Product Portfolio Includes:

Ring-Spot laser welding equipment
Blue laser welding equipment
Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
YAG and Diode laser welding equipment
Mold repair laser welding equipment
QCW laser welding equipment

With a team of technical experts specializing in laser welding R&D, we serve industries including new energy batteries, automotive, electronics, medical devices, and more. Our products deliver irreplaceable welding performance across multiple applications.
