Macchine per saldatura a laser di alluminio

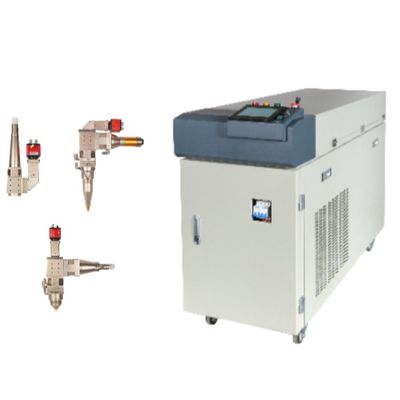

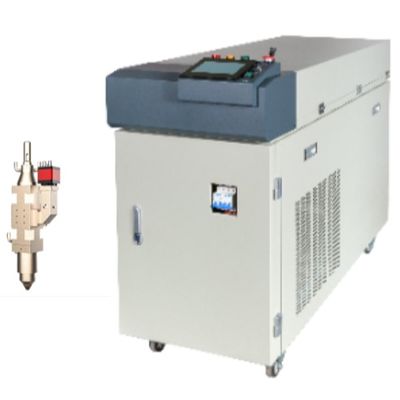

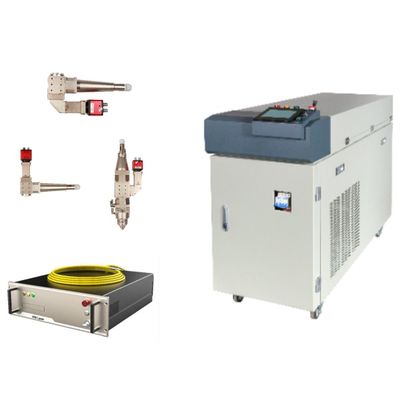

HW High-tech Stable YAG Energy Negative Feedback Laser Welder for Battery Welding

HW High-tech Stable YAG Energy Negative Feedback Laser Welder for Battery Welding

Marchio:	HanWei
Numero di modello:	HW-Y-8/25/80/160/300/500
Moq:	1 set
prezzo:	USD / Set
Condizioni di pagamento:	T/t
Capacità di approvvigionamento:	2000 set / anno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

Modello:

HW-Y-8/25/80/160/300/500

Peso:

100/170/180/220/240Kg

Lunghezza d'onda:

1064 nm

Potenza in uscita:

8/25/80/160/300/500 W

Stabilità del potere:

± 2,5 / ± 3,0

Energia impulsiva:

5J /25J /50J / 70/100J

Frequenza:

30/100 Hz

Ingresso elettrico:

AC220 50/60 Hz / AC380 50/60 Hz

Modalità di lavoro:

Impulso

Dimensione:

955*415*870 mm/ 1175 mm×515 mm×980 mm/ 1360 mm×630 mm×1120 mm

Modalità di raffreddamento:

Aria/Acqua

Larghezza dell'impulso:

15 ms

Attrezzature:

1/1,2/3/6/12/16Kw

Imballaggi particolari:

Imballaggio in compensato di esportazione

Capacità di alimentazione:

2000 set / anno

Descrizione del prodotto

HW High-tech Stable YAG Energy Negative Feedback Laser Welder for Battery Welding

YAG Energy Negative Industrial laser welding machines use a high-energy-density laser beam as the heat source, enabling deep penetration welding. The laser beam is focused, and the energy output is stable. The weld seam is uniform and dense, without pores or cracks, meeting the welding requirements for structural and pressure-bearing components. This equipment has significant advantages in high-demand manufacturing industries, particularly suitable for batteries, solar energy, and aerospace component applications.

Key Features

Laser welding is easy to operate, and parameters can be directly accessed through the touch interface, greatly reducing operation difficulty.
Compared with traditional welding methods, it reduces reliance on skilled welders, lowers labor costs, and shortens training time.
The equipment has fast welding speed, high efficiency, and can be managed by one person handling multiple machines, significantly improving production efficiency.
For manufacturing factories, it can quickly achieve process standardization and personnel optimization, helping enterprises further enhance production competitiveness.

Technical Specifications

Model	HW-Y-8	HW-Y-25	HW-Y-80	HW-Y-160	HW-Y-300	HW-Y-500
Input Electric	AC220 50/60 Hz	AC220 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz
Wavelength	1064nm	1064nm	1064nm	1064nm	1064nm	1064nm
Output Power	8 W	25 W	80 W	160 W	300 W	500 W
Pulse Energy	5 J	25 J	50 J	50 J	70/100 J	70/100 J
Pulse width	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
Frequency	30 Hz	30 Hz	100 Hz	100 Hz	100 Hz	100 Hz
Power Stability	± 2.5	± 2.5	± 3.0	± 3.0	± 3.0	± 3.0
Working Mode	Pulse	Pulse	Pulse	Pulse	Pulse	Pulse
Cooling mode	Air	Air	Water	Water	Water	Water
Weight	100 Kg	100 Kg	170 Kg	180 Kg	220 Kg	240 Kg
Equipment	1 Kw	1.2 Kw	3 Kw	6 Kw	12 Kw	16 Kw
Dimension	955415870 mm		1175mm515mm980mm		1360mm630mm1120mm

Applications

It performs excellently in welding 18650 battery caps, battery tabs, battery panels, and battery connections. It has a small heat-affected zone during welding, effectively preventing damage to the internal structure of the battery; the weld seam is smooth and splash-free, which helps improve the battery's airtightness and reliability.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser focuses on the research, development, and manufacturing of industrial laser welding and handheld welding equipment, offering fiber, pulsed, continuous wave, blue light, diode, and hybrid laser technologies to meet various customer application needs. We provide customized solutions for our clients and offer training support to help them fully realize the value of laser systems.

Product Portfolio

Diode + fiber hybrid welders
YAG + Diode hybrid welders
YAG laser welders

The battery welding machine is suitable for tab welding of power batteries and energy storage batteries, as well as case sealing welding. It features stable weld seams, minimal heat-affected zones, and high efficiency.

Industry Applications

HanWei's Laser equipment is widely used in fields such as new energy battery modules, batteries, aluminum profile structural components, copper, and motor parts. The company also provides process testing and parameter optimization services to ensure that customers' equipment can be quickly put into production and operate stably over the long term. Through continuous innovation and technological optimization, Han's Laser helps customers improve welding efficiency, reduce labor costs, and achieve high-quality mass production.
