Macchine di saldatura a laser industriali

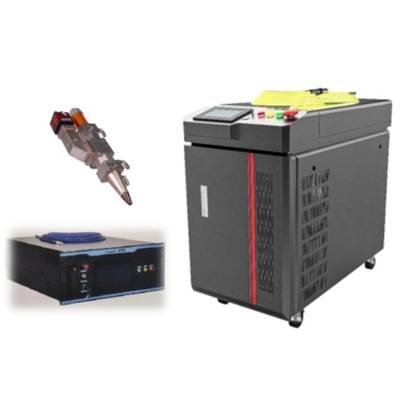

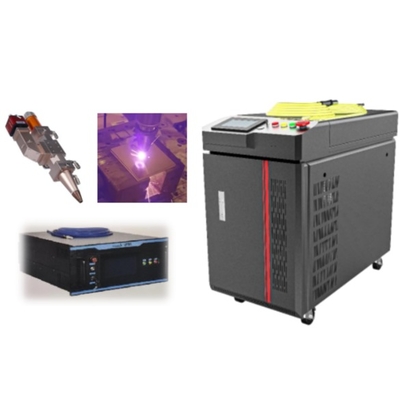

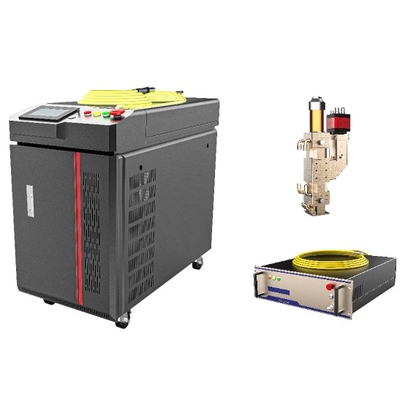

Blue Laser Hybrid Welder with 200μm Core Diameter – Ideal for Reflectivity Materials

Blue Laser Hybrid Welder with 200μm Core Diameter – Ideal for Reflectivity Materials

Marchio:	HanWei
Numero di modello:	HW-B
Moq:	1 set
prezzo:	USD / Set
Condizioni di pagamento:	T/t
Capacità di approvvigionamento:	2000 set / anno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

Potere laser:

1000W

Connessione:

D80 / QBH

Lunghezza d'onda (nm):

445nm

Metodo di raffreddamento:

Raffreddamento ad acqua

Struttura della testa:

T / f / y

Temperatura operativa (℃):

5-40

Materiali di saldatura:

Rame / oro / argento

Diametro del nucleo:

200 μm / 0,22 Na

stabilità di potere:

± 0.5%

Tipo di gas:

Gas coassiale / laterale

Imballaggi particolari:

Imballaggio in compensato di esportazione

Capacità di alimentazione:

2000 set / anno

Descrizione del prodotto

Blue Laser Hybrid Welder with 200μm Core Diameter - Ideal for Reflectivity Materials

Blue Laser Hybrid Welder with 200μm Core Diameter - Ideal for Reflectivity Materials Description:

Hanwei's blue laser welding systems, crafted to match the advanced standards of top-tier products from Europe, America, and Japan, incorporate core technologies developed through independent innovation. These include a proprietary blue laser source, a specialized blue laser control system, and a series of dedicated blue laser welding heads—innovations that usher in a new chapter in laser welding for highly reflective materials.

Designed specifically for bonding reflective metals such as copper, silver, and gold, this system leverages the distinctive ultra-high absorption characteristics of the blue laser spectrum. Reflective materials absorb over 70% of blue wavelengths, granting significant benefits in processing high-reflectivity substrates: it enables spatter-free operation, delivers exceptional stability, ensures superior weld quality, and features the revolutionary ability to achieve double-sided formation via single-sided welding.

Blue Laser Hybrid Welder with 200μm Core Diameter – Ideal for Reflectivity Materials 0

Blue Laser Hybrid Welder with 200μm Core Diameter - Ideal for Reflectivity Materials Features:

1.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.

2.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

3.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.
4.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

Blue Laser Hybrid Welder with 200μm Core Diameter - Ideal for Reflectivity Materials Technical Parameters:

Model	HW-B
Laser Beam	Stationary / Wobble
Head Option	Blue Laser Hybrid
Machine Size	1000450850mm
Core Diameter	200 μm / 0.22 NA
Cooling Method	Water Cooling
Wavelength(um)	445 nm
Laser Power	1000 W
Pulse Rising Time (μs)	＜ 20
Laser Core	50um / 100um
Modulation Frequency (Hz)	1-10000
Power Stability	± 0.5 %
Head Weight	4 Kg

Blue Laser Hybrid Welder with 200μm Core Diameter - Ideal for Reflectivity Materials Application:

1.Semiconductor Industry.
2.Automobile industry.

3.New Energy Resources - Battery Busbar with Copper or Aluminium.
4.Jewelry industry.
5.Computer,Communication,Consumer Electronics - 3C Industry.

Blue Laser Hybrid Welder with 200μm Core Diameter - Ideal for Reflectivity Materials Sample:

Shen Zhen HanWei Laser Enterprise and Feature:

Established in 2016 and headquartered in Shenzhen, Hanwei Laser Equipment Co., Ltd. is a national high-tech enterprise and one of the rare global companies that have earned the title of "specialized, sophisticated, distinctive, and novel." Supported by a team of 50 experts, the company centers its efforts on the entire laser welding industrial chain, boasting professional capabilities in the R&D, production, and sales of welding lasers, control/optical systems, and associated technologies.

Hanwei Laser supplies cutting-edge laser welding technology and high-caliber equipment to international laser integrators. Its product range, which includes desktop and portable devices, incorporates advanced technologies such as fiber, pulsed/continuous-wave, blue, diode, and hybrid lasers, all customized to meet specific requirements. Additionally, the company provides tailored solutions, training, and support services to guarantee that clients can make full use of their laser systems.

Guided by the mission of making world-class welding technology available to all integrators, Hanwei has developed a comprehensive global network. It operates branches and subsidiaries throughout Europe, North America, Asia, and the Middle East, offering services to clients across the globe.
